Coverib 850 allows ample versatility of use; it guarantees excellent thermal and acoustic insulation as well as high mechanical strength.
Coverib 850 is suitable for any construction environment and it can even be integrated with the most complex architectural forms, thanks to the wide range of accessories and colours. It allows perfect integration with photovoltaic systems. Furthermore, thanks to its highly reflective top surface covering, Coverib 850 is a Cool Roof.
Download dwg file
B – Blue, D – Slate Grey RAL 7012, GR – Grey RAL 7023, VM – Medium Green Pantone 378c, W – Off White RAL 9002, N – Natural Alluminium, R – Red, S – Oxide Red RAL 3009, T – Terracotta RAL 8004, Q – Patina Green, C – Electrolytic Copper
FOLDED
BENDED

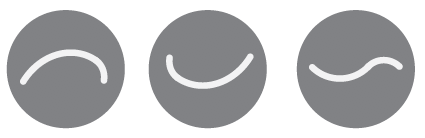

CURVED
DOUBLE CURVED
Coverib 850 Multilayer metal sheet with trapezoidal profile, CE marked according to UNI EN 14782. Appendix A: complies with UNI EN 508-1 Appendix B: consisting of a structural galvanized steel sheet (EN 10346) with a thickness of 0,60 mm (ie mm 0,50 or 0,80) protected in the upper face by an anticorrosive and soundproofing thermoplastic coating (about 1.5 mm thick) and by a natural aluminum foil (or pre-painted aluminum, or electrolytic copper), and in the lower face by a primer and a natural aluminum foil (or prepainted aluminum).
The external layers wrap the side edges of the sheets along the entire length to guarantee their full protection. To ensure the characteristics stability P= 300 performances over time, the protection with anticorrosive and soundproofing function, has a thickness of about 1.5 mm and it is positioned on the extrados of the sheet.
The cover element ensures the following performance requirements:
Concentrated loads resistance: |
Steel thickness 0,5: 1,2Ln Lu kN = 1000 span 1,80 m; Steel thickness 0,6: 1,2 kN span 2,30 m; LnLukN = 1000 span 1,80 m; Steel thickness 0,6: 1,2 kN span 2,30 m; Steel thickness 0,8: 1,2 kN spani 2,60 m (EN 14782 Appendice B) |
Reaction to fire:: |
Class B-s1, d0 (UNI EN 13501-1; EN 13823; EN ISO 11925-2) |
Performances to external fire: |
Class BRoof T3 (UNI EN 13501-5; UNI CEN/TS 1187) |
Durability – Salt spray resistance: |
4000 hours (UNI EN 14782 – Appendix A; ISO 9227) |
Durability – Humidity resistance: |
3000 hours (UNI EN 14782 – Appendix A; EN ISO 6270-1) |
Durability – SO2 resistance: |
45 cycles (UNI EN 14782 – Appendix A; EN ISO 6988) |
Sound insulation: |
28 dB (UNI EN ISO 140-3) |
Potere fonoisolante: |
28 dB (UNI EN ISO 10140-2:2010) |
Sound deadening – noise generated by driving rain: |
ISTEDIL cert. N°1302/202-G 1302/202-C 8,41 times higher than a mm Lu = 0,7 785 mm thick aluminium sheet 4,17 times higher than a sandwich panel with 40 mm insulation 52,3 dB UNI EN ISO 140-18 |
Solar Reflectance Index (SRI): |
Natural aluminium surfacing (N)107%; Off White RAL 9002 (W) 73,0%; Grey RAL 7023 (GR) 42,6%; Terracotta RAL 8004 (T) 37,6%; Blue (B) 37,3 %; Medium Green, (VM) 35,6%; Red RAL 8016 (R) 35,2%; Slate Grey RAL 7012 (D) 34,3%; Oxide Red RAL 3009 (S) 33,4%; (ASTM E1980-11). |
|
1,07 W/m 2 K (ISO 6946) with natural aluminium lower surfacing |
